Traversers before the workshop or the parking yard safely and efficiently reposition rail vehicles, such as locomotives, powered sections or individual rail cars. Design of the traverser will be in close cooperation with the end user to optimise the system for existing logistics and material flow schemes.

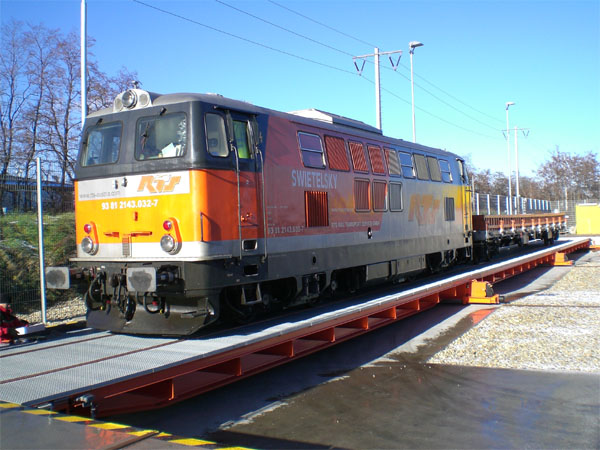

- Traverser for rail vehicles
- Usable length 24 m ; Load capacity 90 tons
- Design without pit plus access ramps at both ends
- Lifting arrangement to lower the loaded or unloaded traverser to match differing heights of connecting tracks.
- Connecting tracks cross the traverser rail to allow rail vehicles to cross the traverser area.
- Traverser for locomotives
- Usable length 48 m ; Load capacity 100 tons.
- Sunk-in design for use in a pit with 4 rails

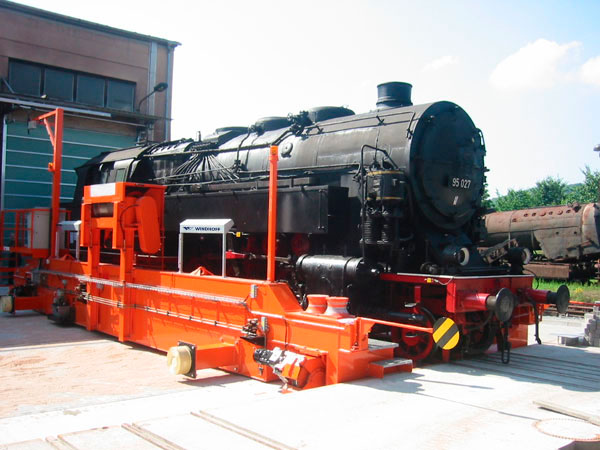

- Traverser for locomotives
- Usable length 13 m ; Load capacity 120 tons.
- With rope winch (3 ton capacity) to pull locomotives onto the traverser.
- Sunk-in design for use in a pit
- Traverser for locomotives
- Usable length 24 m ; Load capacity 150 tons.
- Sunk-in design for use in a pit
- Operation and control by an operator in a closed cabin on the traverser or by the locomotive driver via mobile control panels and telephone posts at the connecting tracks.
